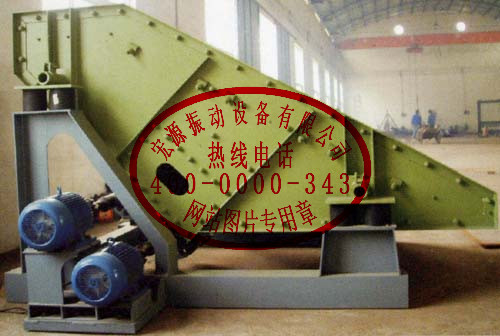

XBZS系列弹臂振动筛
XBZS系列弹臂振动筛产品概述
XBZS系列弹臂振动筛是一种新型的筛分设备，它广泛应用用于矿山、煤炭、电力、冶金、建材、耐火等各行各业对大物料及中、小颗粒状物料的分级作业。
Product overview
XBZS series vibrating screen is a new type of elastic arm of screening equipment, it is widely used for mine, coal, electric power, metallurgy, building materials, refractory and all walks of big, small granular material in the material and the classification work.
XBZS系列弹臂振动筛主要特点
XBZS系列弹臂振动筛面倾斜安装，角度在20o-35o之间，与其它同类型产品相比具在下列特点
1.价格低，备件量极少。
2.结构简单，造型美观。
3.能耖少，可节约大量能源。
4.倾角大，体积小，筛分能力大。
5.重量轻，便于安装及工艺布置。
6.筛网的筛分效率比一般的筛网高出30%－40%，具有自清理功能。
Features
XBZS series vibrating screen play arm installation, the incline angle between 20-35, compared with other similar products in the following characteristics
1. The price is low, quantity of spare parts.
2. Simple structure, beautiful shape.
3. Less to harrow, can save a lot of energy.
4. The angle is big, small volume, screening ability.
5. Light weight, easy installation and process arrangement.
6. Screening efficiency of 30% to 40% higher than the average screen, with self-cleaning function.
XBZS系列弹臂振动筛工作原理
筛箱依靠两台相同的振动电机或普通电机带激振器驱动做相反方向自同步旋转，使支承在减振器上的整个筛机做直线振动，物料从入料端落入筛后，迅速前进、松散、透筛、完成筛分作业。
本机由筛箱、振动电机（激振器）、减振系统及底架等组成。筛箱由筛框、筛板、衬板等组成。
本系列筛机采用高性能、高寿命YZO系列振动电机或激振器作激振源，调节振动源激振力的大小，可以改变筛机的振幅。调整方法参看YZO系列振动电机说明书。
减振系统由橡胶弹簧和卡箍、支承座等组成。底架由料仓库及底盘架等组成。本系列振动筛激振源安装方式可分为上振式和下振式，减振器安装方式可分为座式或吊挂式。还可以根据用户需要进行设计制造。
Working principles
Screen box relies on two of the same vibration motor or ordinary with belt vibrator driven to do the opposite direction from synchronous rotation, the bearing on the shock absorber of the whole do linear vibration,after falling into a sieve material from the material end, fast forward, loose, through screen, complete screening operations.
This machine is composed of screen box, vibration motor（vibrator）, vibration system and chassis, etc.Screen box consists of the sieve box, sieve plate, plate, etc.
This series machine uses high performance, high working life YZO series vibrating motor or vibrator excitation source, adjust the size of the source of vibration exciting force, can change the amplitude of the sieve machine.See YZO series vibrating motor manual adjustment method.
XBZS系列弹臂振动筛技术参数
Parameters
| 型号 | 筛面面积 | 筛面倾角 | 给料粒度 | 筛孔尺寸 | 处理量 | 振频 | 双振幅 | 配用电机 | ||
| m2 | 度 | mm | mm | t/h | Hz | mm | 型号 | 功率Kw | 电压V | |
| XBZS-0918 | 1.62 | 10 | <150 |
3 5 10 15 20 25 50 |
15-160 | 16 | 6-9 | YZO-20-6 | 2*2.0 |
? ? 380 |
| XBZS-1020 | 2 | 15 |
15-200 |
YZO-20-6 |
2*2.0 |
|||||
| XBZS-1224 | 2.88 | 10 |
25-300 |
YZO-30-6 |
2*2.5 |
|||||
| XBZS-1030 | 3 | 15 |
35-360 |
YZO-30-6 |
2*2.5 |
|||||
| XBZS-1230 | 3.6 | 15 |
40-400 |
YZO-50-6 |
2*3.7 |
|||||
| XBZS-1530 | 4.5 | 15 |
45-460 |
YZO-50-6 |
2*3.7 |
|||||
