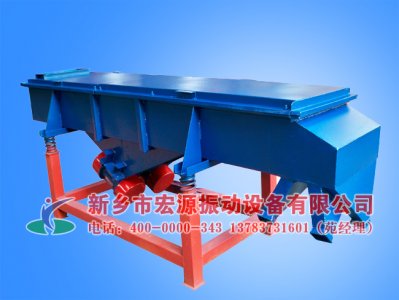

ZPS系列直排筛

ZPS系列直排筛产品概述

    ZPS直排筛是我公司工程师为部分行业特殊设计的一种多用途新型筛分机,改变了原由的双电机结构形式,采用单一卧式振动电机,物料的运行轨迹有多种调节形式,设备适应性显著增加;物料直接排放,有大的处理量。

直排筛

    1000型筛机,网目24目,在线筛分制造方便面用小麦粉,用于除杂、增加小麦粉比表面积,可达到350kg/150秒。 公司可根据用户要求设计制造,如将进料口加高、出料口加装蝶阀等。

Product overview
  ZPS straight vibrating screen is my company engineer for part of the industry design a new specially type multi-purpose screening machine, changing the reason of double motor structure, using a single horizontal vibration motor.The trajectory movement of the material has kinds of adjustment forms, equipment adaptability significantly increased;Material direct emissions, has a large capacity.SYM - 1000 type screening machine,mesh 24 ,online screening made with wheat flour, is used for removing impurity, increasing the specific surface area,  can be up to 350 kg / 150 seconds.Our company can design and manufacture according to user requirements, such as heighten the feeding port, discharging mouth with butterfly valve, etc.

ZPS系列直排筛主要用途

    ZPS直排式振动筛多用于面粉、淀粉、洗衣粉、金属粉、添加剂、化工、非矿等行业的颗粒、粉末的粗略筛分、精度筛分,处理量大、易与生产线结合。你可600mm至1800mm之间有更多的选择。
Applications
  ZPS straight vibrating screen is used to flour, starch, washing powder, metal powder, additives, chemical industry, the mining industry ,the rough screening of granular, powder, sieving precision, large capacity, easy to combine with production line.You can have more choice between 600 mm to 600 mm.

ZPS系列直排筛主要特点

1.结构简单、紧凑,维护方便,故障小。
2.全封闭结构,杜绝粉尘飞扬,噪音小,安静环保。
3.大流量的出料口在底部,便于流水线作业的设备安装。
4.上层出料口可以在360°内任意调整,方便安装、使用。
5.处理量大,筛分精度高,可以有效的节约能源,起到事半功倍的效果。
6.新型网架结构,网的涨紧度高,使用寿命长,并且客户自己可以快捷更换筛网
Features
1. Simple and compact structure, convenient maintenance, less faults.
2. The product is fully closed structure, prevent dust scatter, the noise is small, quiet and environmentd protection.
3.  The discharge port of Large flow at the bottom, easy to assembly line equipment installation.
4. The upper discharging mouth can within 360 ° in any adjustment, convenient installation and use.
5. Large quantity, high accuracy, can effectively save energy, have twice the result with half the effort.
6. New type of space truss structure, the net up tight degree is high, service life is long, and customers can quickly change the screen.

ZPS系列直排筛外形尺寸图

Parameters

宏源科技 直排筛外形图

型号 A B C D E F G
ZPS-600 600 150 380 560 325 120 80
ZPS-800 800 200 540 600 350 125 90
ZPS-1000 970 250 640 640 350 150 100
ZPS-1200 1170 250 700 700 400 180 120
ZPS-1500 1470 250 760 760 440 200 120
